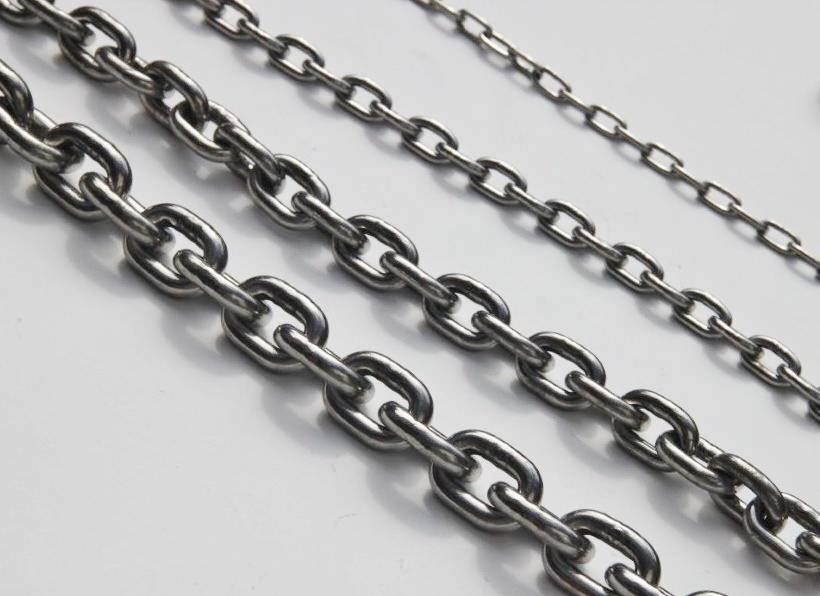

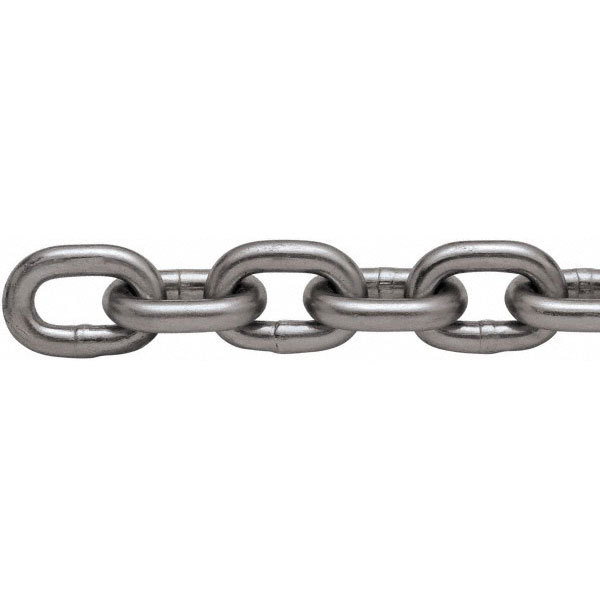

Transport Chain NACM84/90(G70)
We are a famous company that offers our clients Transport chains that are made of world class solid materials. Our transport chains are known among our clients for their strength. These transport chains have amazing stamina. Any type of goods or baggage's can be tied with them. Apart from that they have great durability. Designs are awesome. Last but not the least we offer them at prices that any of our customers can afford.
Features :
> Great Strength
> Amazing durability
> Affordable
| Nominal Size | Material Design | Working Load Limit(max) | Proof Load(min) | Breaking Load(min) | Inside Length(max) | Inside Width(min) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | mm | in | kg | lbs | kn | lbs | kn | lbs | mm | in | mm | in |
| 7.0 | 1/4 | 7.0 | 0.276 | 1430 | 3150 | 27.0 | 6100 | 53.9 | 12100 | 31.5 | 1.24 | 9.8 | 0.38 |
| 8.0 | 5/16 | 8.0 | 0.315 | 2130 | 4700 | 41.6 | 9400 | 83.5 | 18800 | 32.8 | 1.29 | 11.2 | 0.44 |
| 10.0 | 3/8 | 10.0 | 0.394 | 2990 | 6600 | 55.0 | 12400 | 110 | 24700 | 35.0 | 1.38 | 14.0 | 0.55 |
| 13 | 1/2 | 13.5 | 0.512 | 5130 | 11300 | 92.9 | 20900 | 185.5 | 41800 | 45.5 | 1.79 | 18.2 | 0.72 |
| 16 | 5/8 | 15.8 | 0.638 | 7170 | 15800 | 140.4 | 31600 | 280.8 | 63200 | 56.0 | 2.20 | 20.0 | 0.79 |
